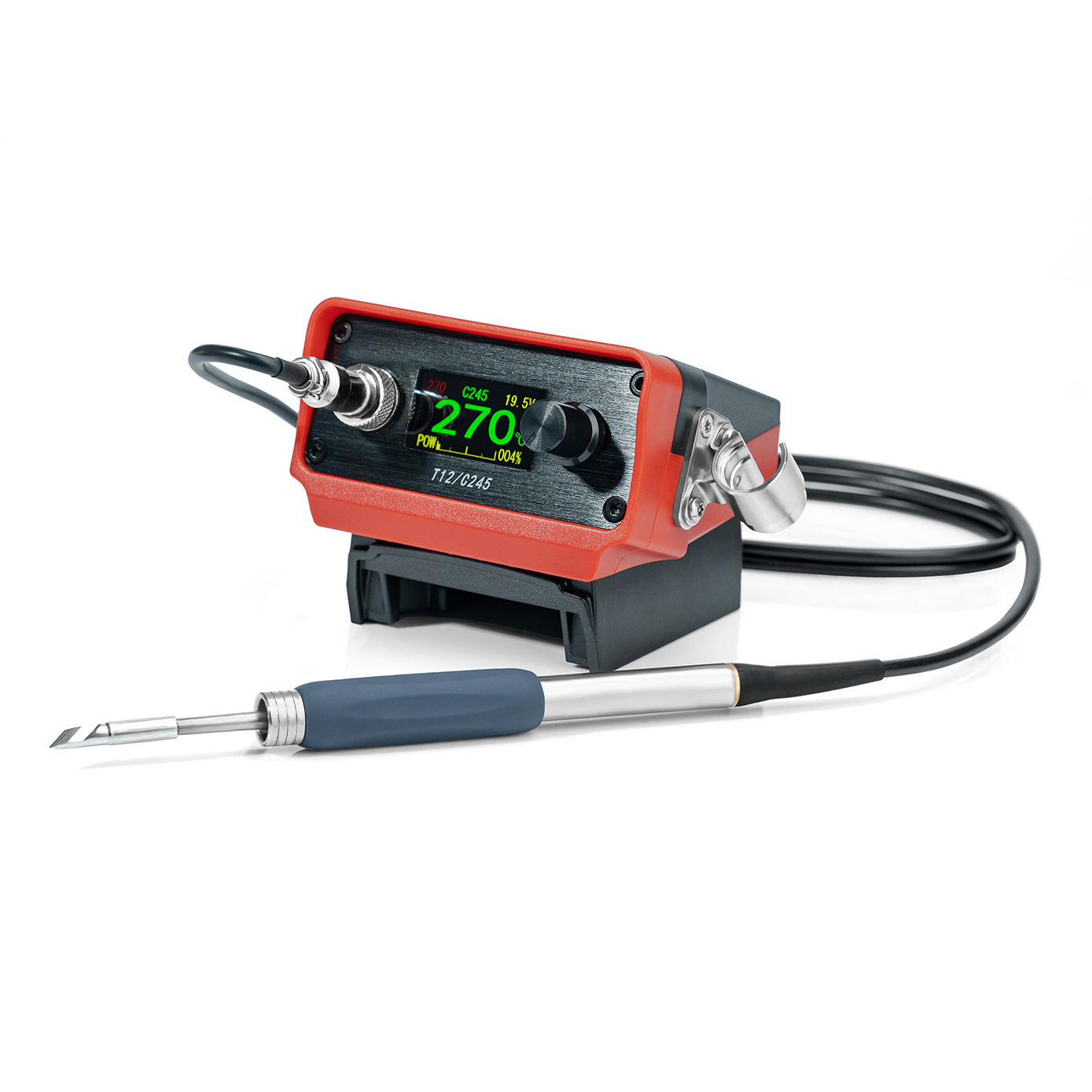

Dual Power Soldering Iron Station

Product details:

1. Dual power input — use with an 18 V Li-ion battery or a DC jack (17–24 V, min 6 A).

2. Fast heat-up — reaches working temperature in just 5 seconds.

3. Wide temperature range — adjustable from 100–500 °C (212–932 °F); recommended maximum 450 °C.

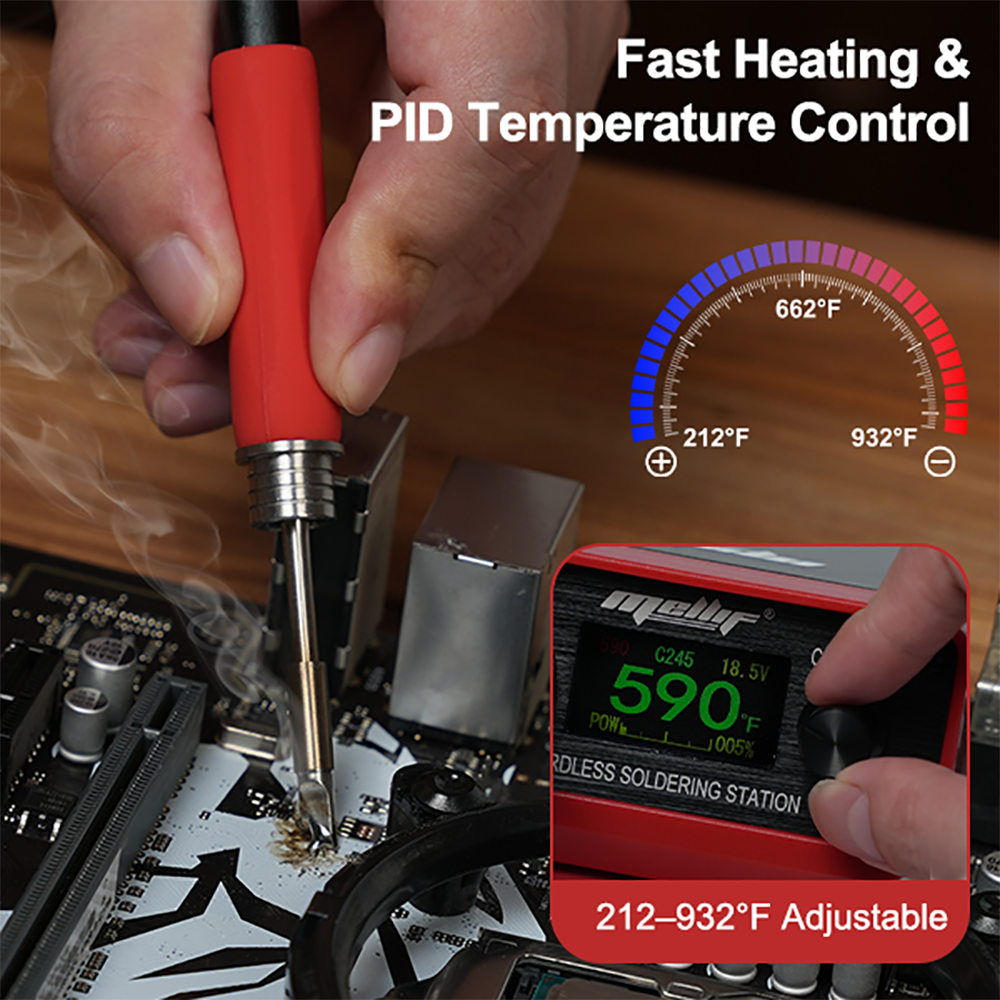

4. Smart control — intelligent PID temperature control ensures fast and stable heating.

5. HD IPS display — colour screen with adjustable brightness (levels 1–9).

6. Sleep and safety modes — auto sleep when docked or idle; vibration/stand detection with adjustable timers (0–99 min).

7. Tip compatibility — supports both T12 and 245 tips with easy handle switching.

8. Advanced settings — choose °C/°F, adjust temperature steps, multi-point calibration (200/300/400/500 °C), voltage alarms, factory reset, and switch between EN/CN languages.

Specification:

Approx size: 22.0 x 12.0 x 9.0 cm

Approx weight: 0.40 kg

Power input: 18 V Li-ion battery or DC jack (17–24 V, min 6 A)

Heat-up time: 5 seconds

Temperature range: 100–500 °C (212–932 °F)

Recommended maximum temperature: 450 °C

Temperature control: PID

Display: HD IPS colour screen

Brightness levels: 1–9

Sleep timer: 0–99 min

Tip compatibility: T12 and 245

Calibration points: 200/300/400/500 °C

Language options: EN/CN

Matters needing attention:

Use only with compatible 18 V Li-ion batteries or a DC power supply within the specified 17–24 V range (minimum 6 A). Do not exceed the recommended maximum temperature of 450 °C during normal use.

Allow the station to cool completely before handling or storing. Keep away from flammable materials and ensure adequate ventilation during operation.

Always follow the safety instructions provided with your battery and power supply. This product is intended for soldering tasks only.

Package Includes:

1 x Soldering iron station

1 x Soldering iron handle

1 x Power cable

1 x User manual
